SP. Subminiature Basic Switches

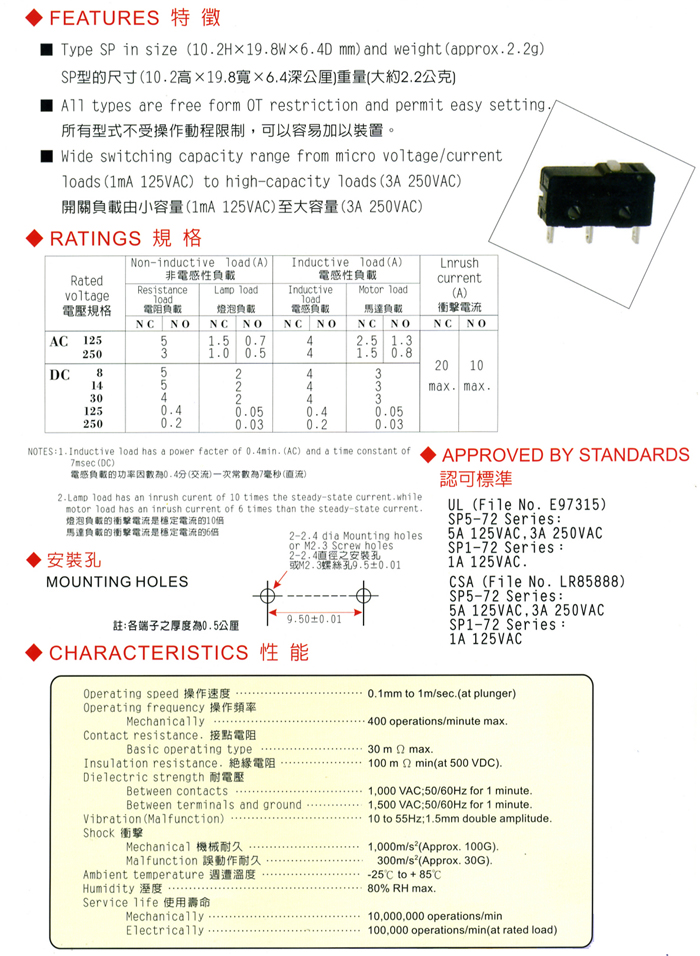

Features
- Type SP in size (110.2H X 19.8W X 6.4D mm) and weight (approx.2.2g)
- All types are free form OT restriction and permit easy setting.
- Wide switching capacity range from micro voltage/current loads (1mA 125VAC) to high-capacity loads(3A 250VAC)
Approved By Standards
- UL (File No. E97315)
- SP5-72 Series: 5A 125VAC, 3A 250VAC
- SP1-72 Series: 1A 125VAC.
-

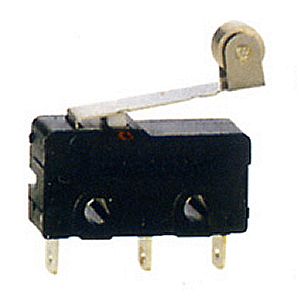

SP-□-72GL2-□ Roller Lever Type
-

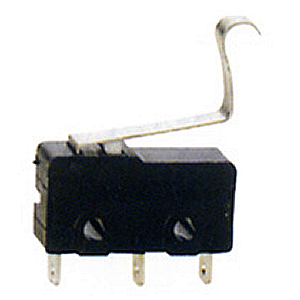

SP-□-72GL24-□ Formed Lever Type
-
SP-□-72GL14-□ Edge Lever Type
-

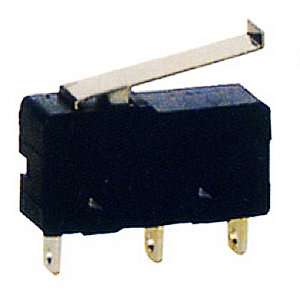

SP-□-72GL13-□ Simulated Lever Type
-

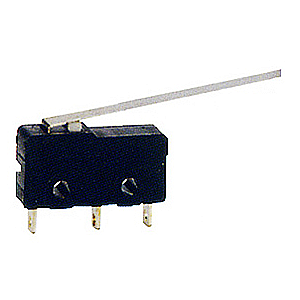

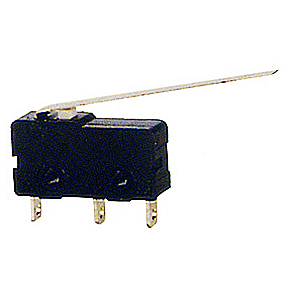

SP-□-72GL140-□ Long Lever Type
-
SP-□-72GL133-□ Long Lever Type
-
SP-□-72GL111-□ Long Lever Type
-

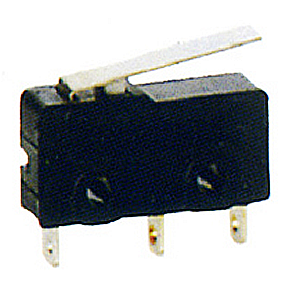

SP-□-72GL-□ Standard Lever Type
-

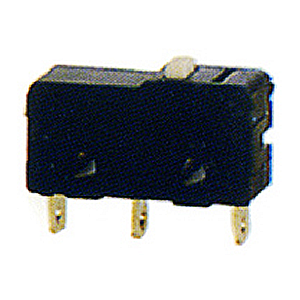

SP-□-72-□ Pin Plunger Type
Total of 9 results
